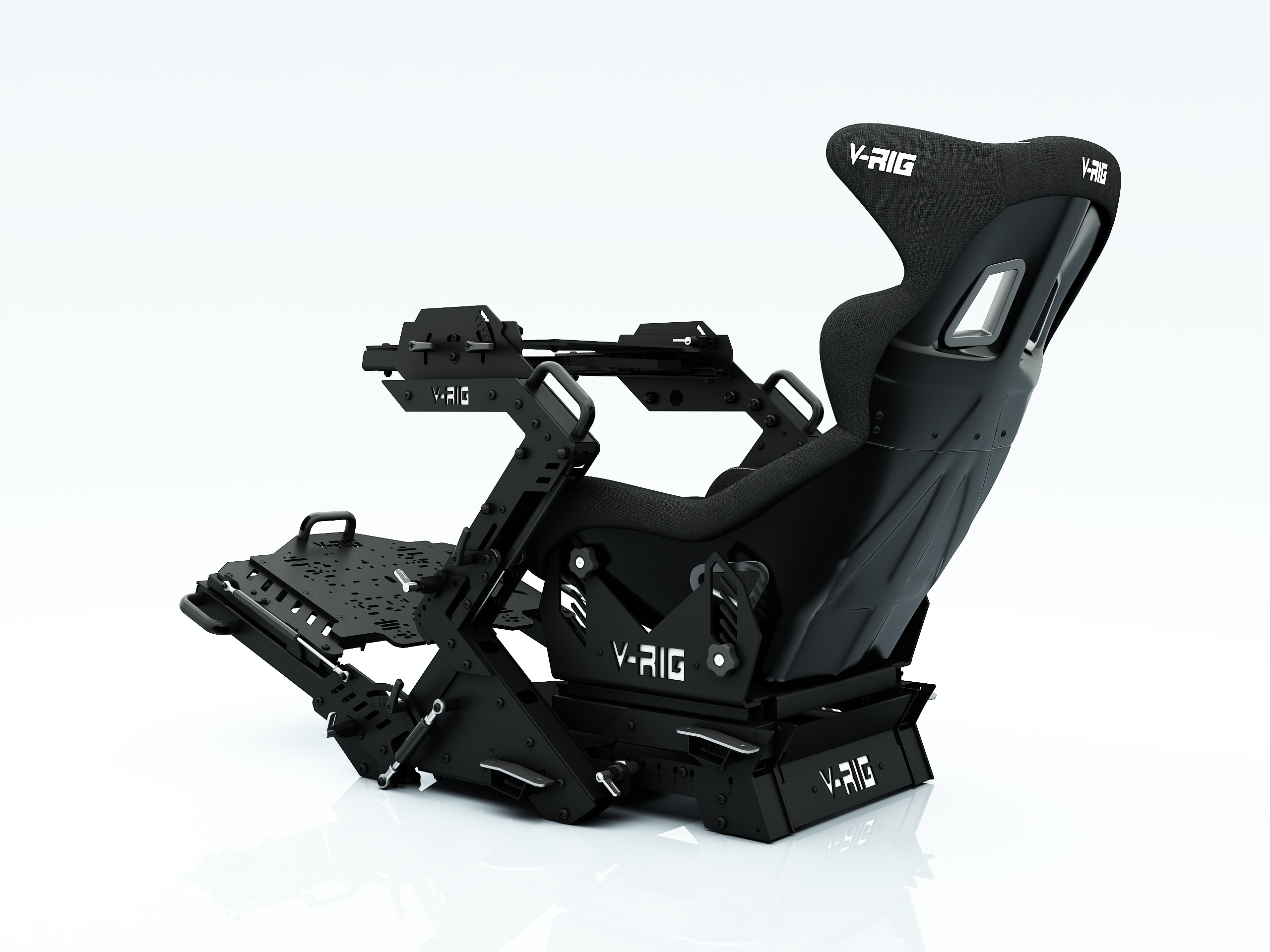

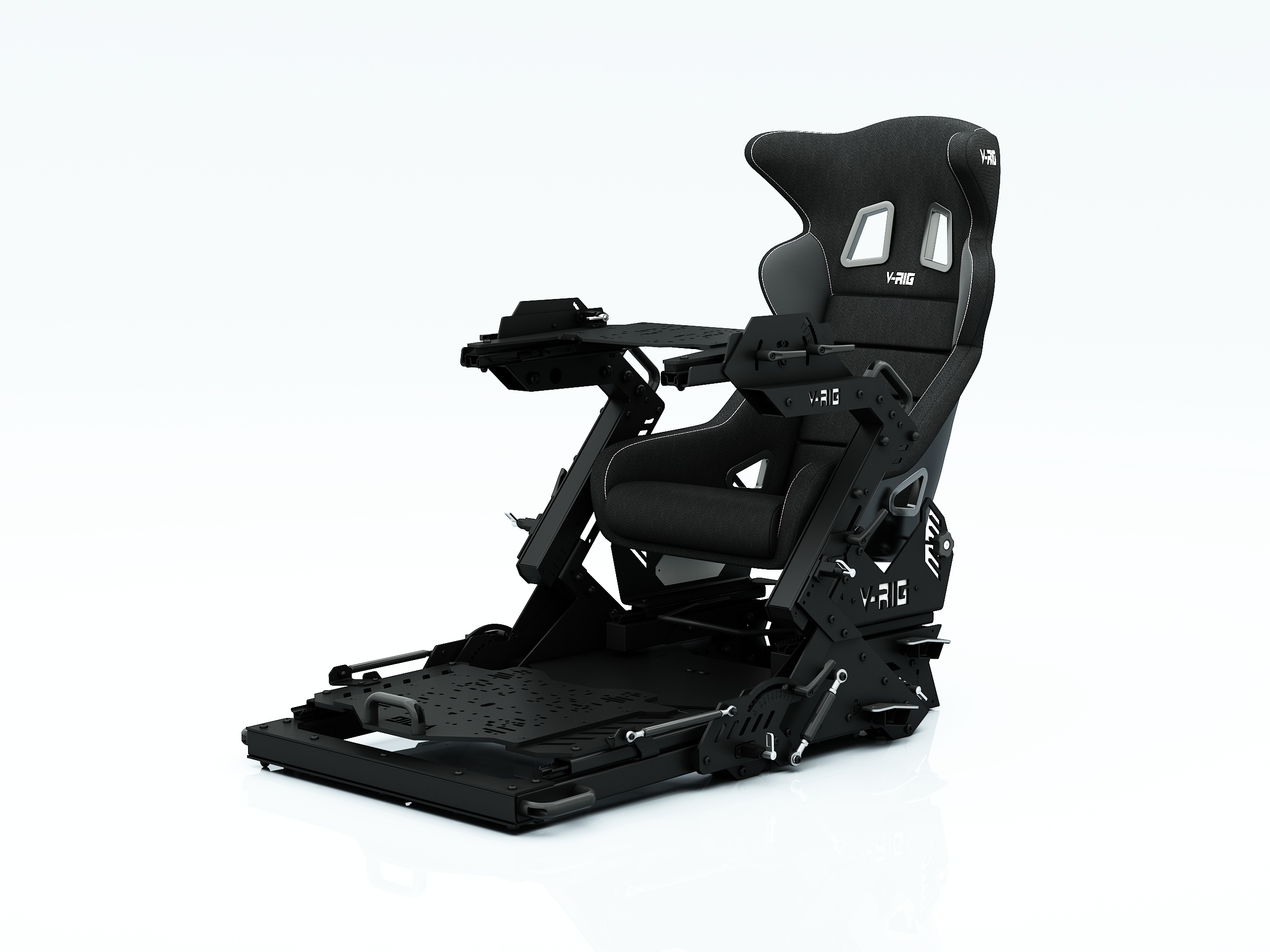

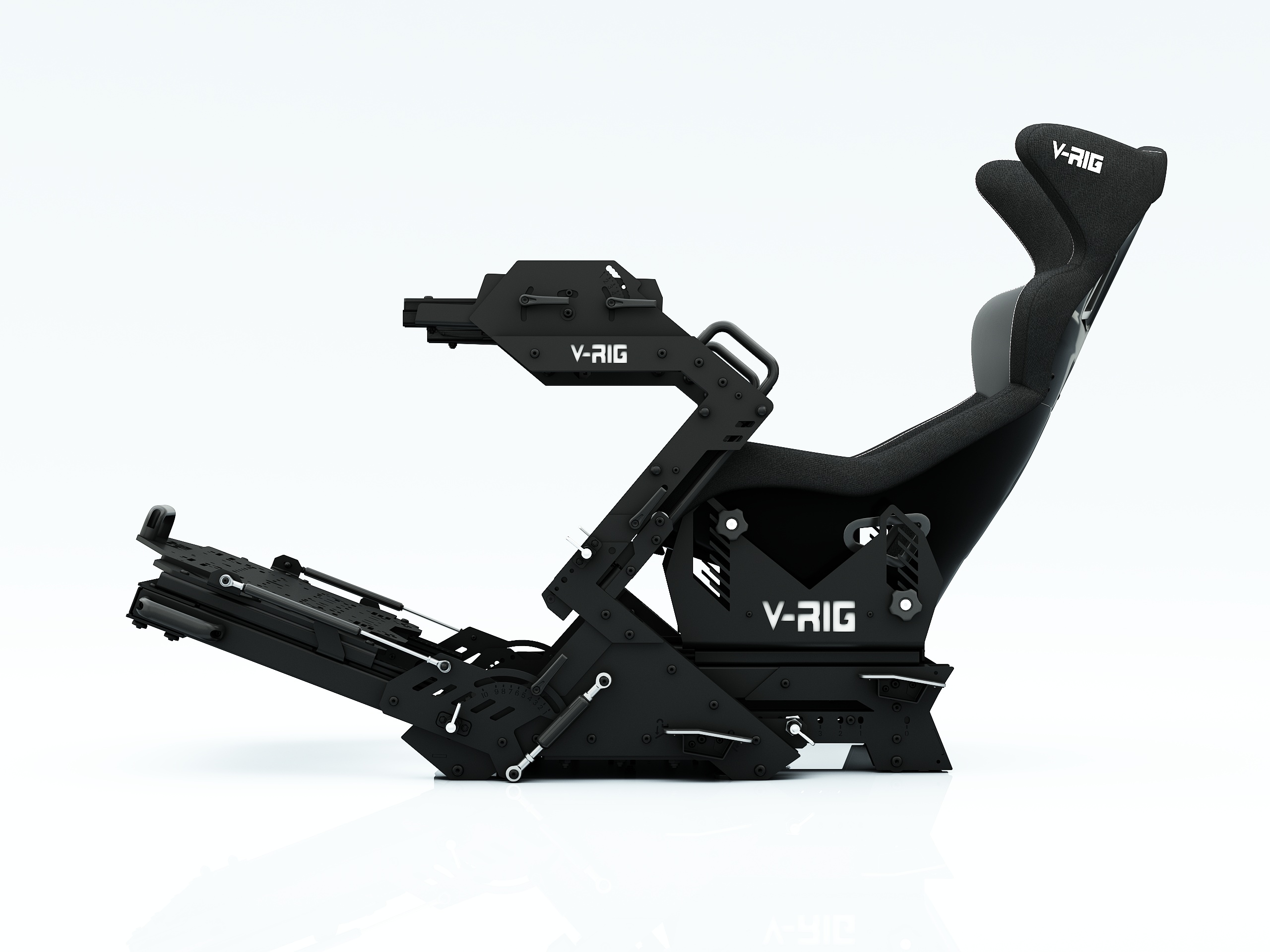

V-RIG S1 Chassis & Seat Pre Order

Description

Introducing the V-RIG S1, with 10 axis adjustability enabling conversion to suit multiple authentic seating positions for a wide varying height range and with the unique ability to completely fold away with quick release functionality to save space in your home when not in use.

 ABOUT

Utilising a unique construction method that allows individual elements of the rig to be updated, in the same way that software can be updated so can the rigs hardware.

Fully modular to allow add-ons to suit your requirements.

Heavy duty construction for optimum sim performance – 106Kg Total chassis weight.

10 AXIS ADJUSTABILITY

By utilising a unique quick release rig expansion mechanism, the length can be stretched far beyond the usual adjustments of most rigs on the market.

This ability allows multiple seating styles to be configured regardless of height.

Main rig

• SEAT STAGE 2 DISTANCE ADJUST VIA MASTER FRONT AND BACK RIG EXPANSION : 34cm

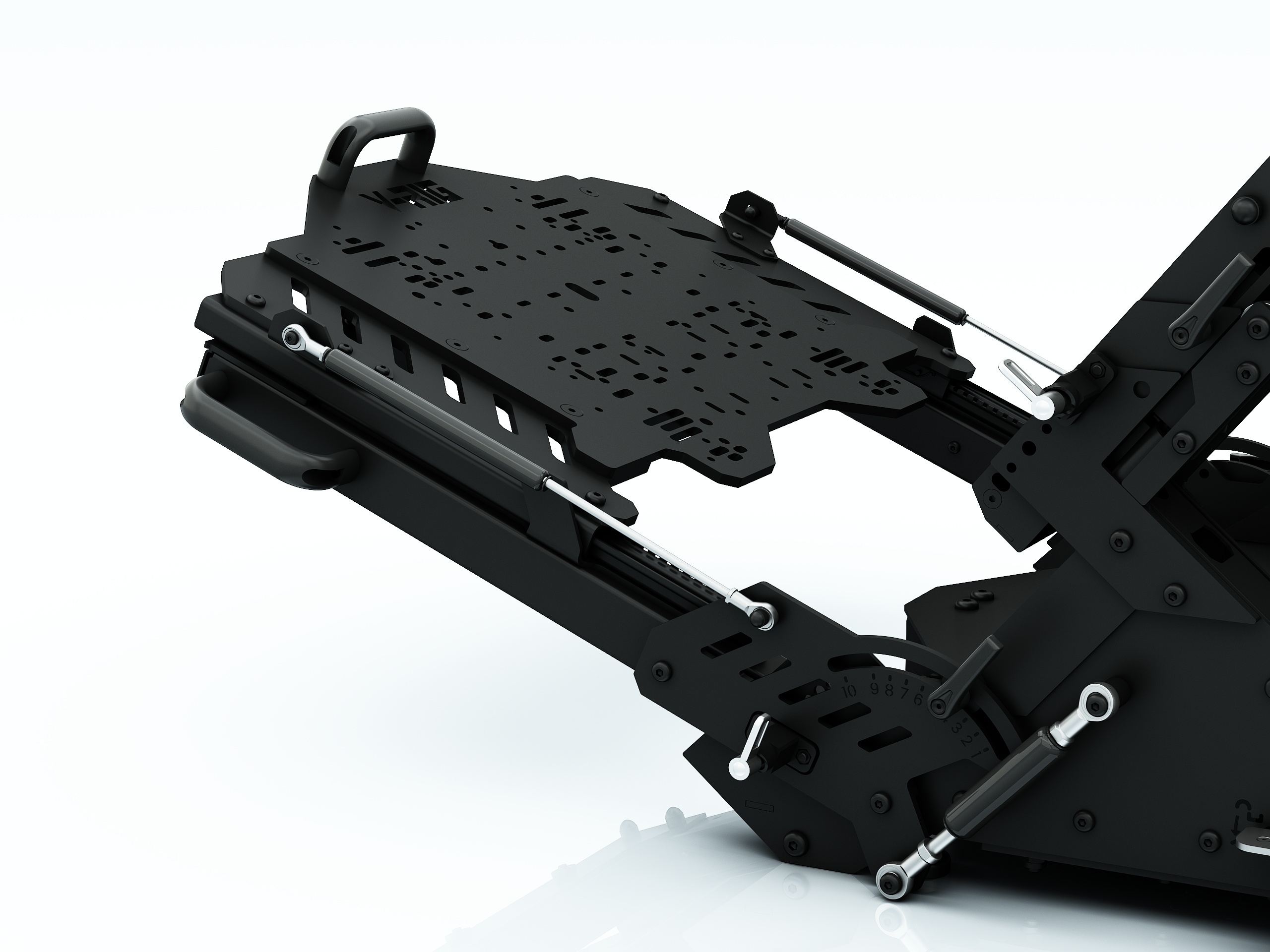

Pedal Deck

• PEDAL DECK HEIGHT ADJUST : 16 cm
• PEDAL DECK ANGLE ADJUST: 0 to + 40 degrees
• PEDAL DECK STAGE 1 DISTANCE ADJUST: 27cm (QR expansion adjust)

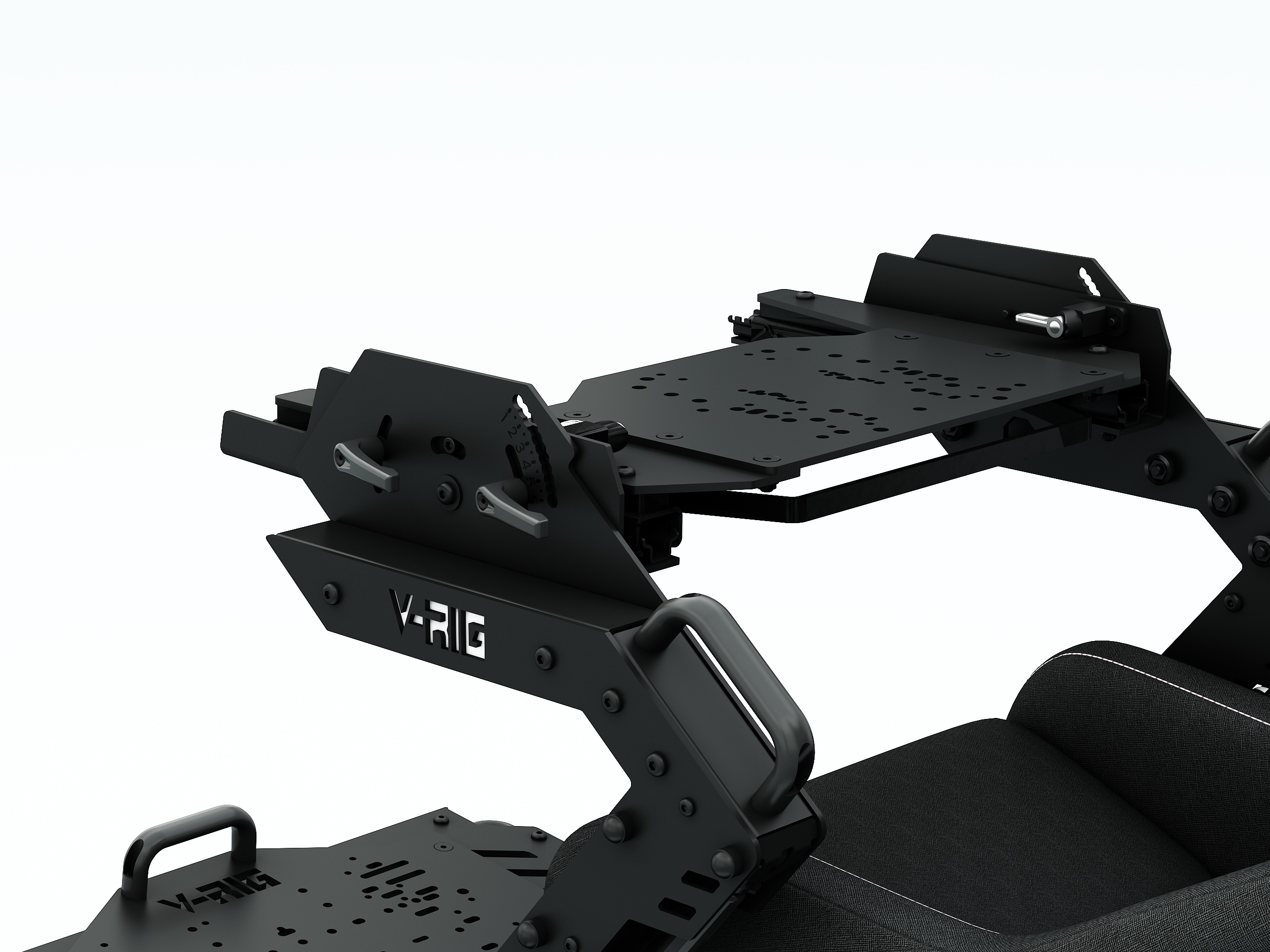

Steering deck

• STEERING DECK HEIGHT ADJUST : 14 cm
• STEERING DECK ANGLE ADJUST: -20 to + 20 degrees
• STEERING DECK DISTANCE ADJUST : 20cm (QR Handle glide runners)

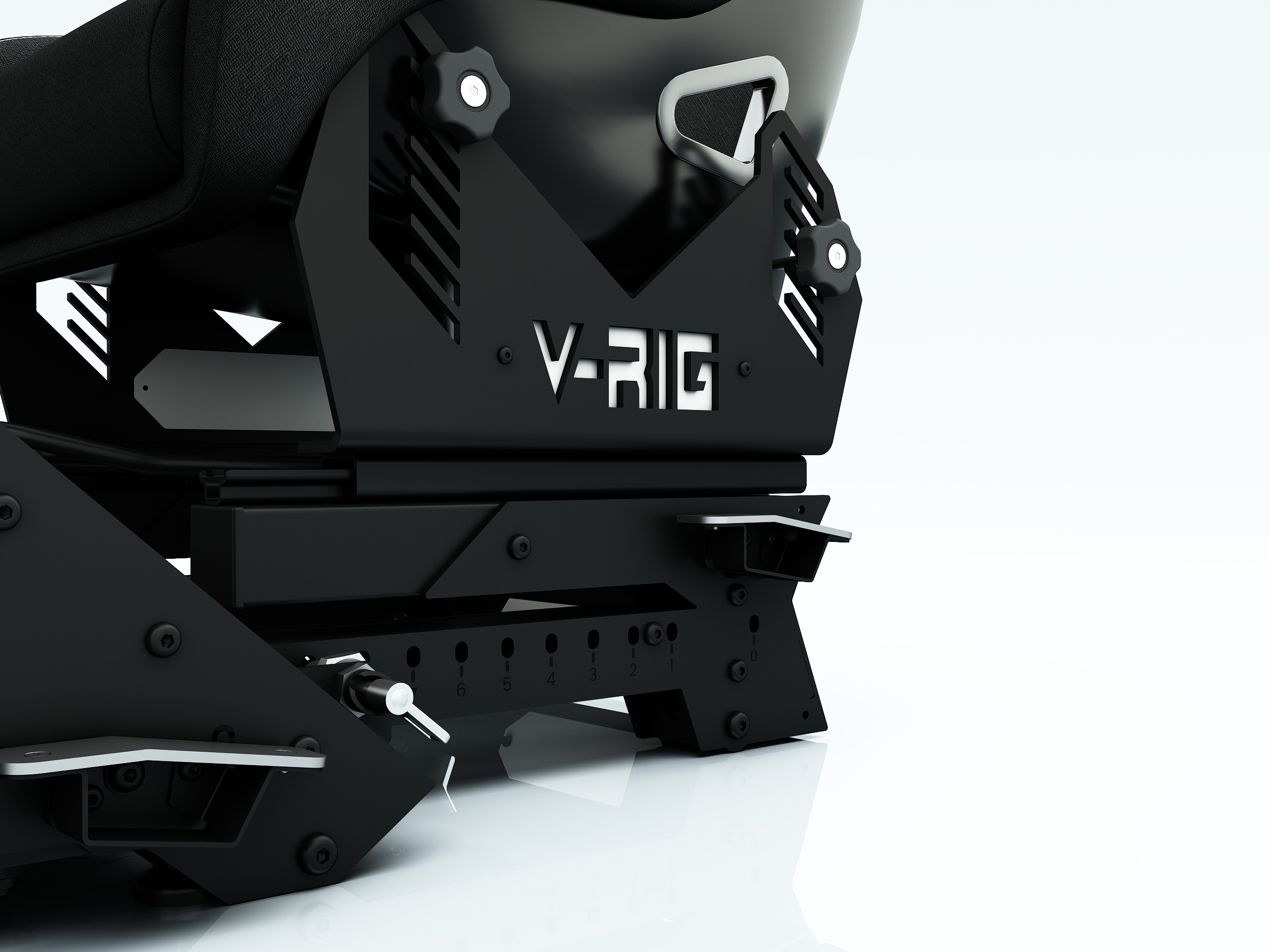

Seat

• • STAGE 1 SEAT DISTANCE ADJUST : 20cm
  • TOTAL SEAT DISTANCE ADJUST COMBINED WITH STAGE 2 SYSTEM (54cm), (72cm total combined adjustment of seat and main rig front to back expansion system)
  • SEAT HEIGHT ADJUST: 14cm
  • SEAT ANGLE ADJUST: -25 to + 25 DEGREES

*Rotation angle that is achievable will vary depending on the height position of the particular part.

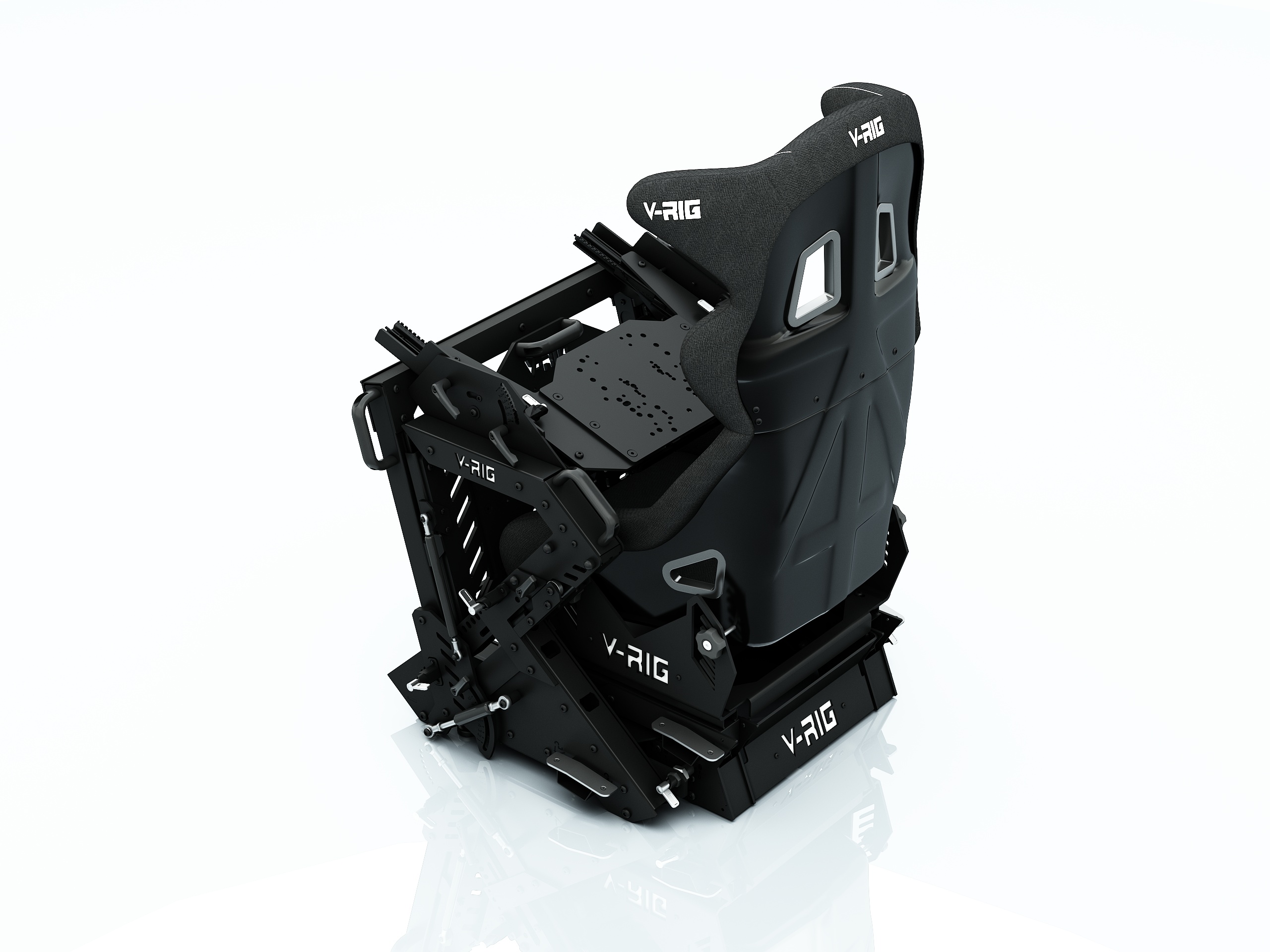

SPACE SAVING MODE

Once you have finished your session the rear of the rig can be contracted inwards with a quick release mechanism reducing the length of the simulator and the front pedal section can be folded up, again utilizing an easy quick release mechanism.

The system uses a high bearing system, rear wheels and a quick release locking system ensuring smooth and effortless operation.

DIMENSIONS IN SPACE SAVER MODE :

LENGTH : 65.9cm (Maximum possible contraction assuming the seat is tilted forwards and not protruding from the rear of the rig)
WIDTH  : 80cm (Locking Latch to Locking Latch)
HEIGHT : 75cm (Floor to steering deck top)



UNCOMPROMISED COMPATIBILITY

Utilising the extensive adjustment the rig can be quickly transformed to suit small children and tall adults with an uncompromised seating position.

• 4.2 feet – 7 feet  ( 128 cm – 214cm )
• 4.2 ft  CHILD to 7ft TALL ADULT

*Within the 4.2 ft to 7ft range the rig is able to achieve  F1, Gt and Rally seating positions, however users shorter than 4.2 feet and taller than 7 feet can still use the simulator, only consideration needs to be made for certain aspects of the seating position not being optimal when compared to real world F1, GT and Rally/touring seating positions in these scenarios.

DIMENSIONS – MAX EXTENSION :

LENGTH : 185cm (Maximum possible extension assuming the seat is tilted backwards and protrudes from the rear of the rig)
WIDTH  : 80cm (Locking Latch to Locking Latch)
HEIGHT : 80cm (Floor to steering deck top)

UPDATABLE CONSTRUCTION DESIGN

Designed to be functional, adjustable to the extreme and with a captivating design. With support for all major controls, suit most body types and all racing types. Simply put, its the swiss army knife of rigs.

Utilising a weldless part based architecture, this approach allows ALL parts of the main chassis to be updatable with improvements, as technology evolves and new third party components are released in the market we will be able to provide updated individual parts of the rig or complete update kits securing your rigs future.

• 50M X 50MM STEEL BOX SECTION AND HEAVY DUTY THICK STEEL PLATE USED THROUGHOUT THE RIG TO PROVIDE THE ULTIMATE STRENGTH AND RIGIDITY
• HEAVY DUTY BOLTS AND LOCKING NUTS SECURE THE MAIN CHASSIS COMPONENTS ENSURING SOLID CONNECTIONS THAT WILL NOT WORK LOOSE.



FEATURES OVERVIEW

• • SELF ASSEMBLY CONSTRUCTION FOR EFFICIENT REDUCED COST SHIPPING
  • STEP BY STEP ASSEMBLY INSTRUCTIONS AND TOOL KIT INCLUDED
  • MODULAR UPDATABLE CONSTRUCTION
  • MODULAR UPGRADABLE DESIGN
  • ULTRA STRONG LAZER CUT STEEL CONSTRUCTION
  • EXTREME 10 WAY ADJUSTABILITY (12 WAY WITH GEARSTICK ARM)
  • SUPPORTS MOST POPULAR MAJOR CONTROLS
  • SUPPORTED COMPONENTS MADE AVAILABLE ON REQUEST BY UTILISING OUR OWN IN-HOUSE CAD TEAM AND IN-HOUSE MANUFACTURING FACILITY
  • ABILITY TO SUPPORT WIDE HEIGHT RANGE
  • ADJUST THE RIG TO CREATE AUTHENTIC F1, GT & RALLY STYLE SETUPS
  • GEARSTICK ARM UPGRADE WITH HEIGHT ADJUST AND DISTANCE ADJUSTMENT
  • 10 YEAR COMPREHENSIVE WARRANTY (See Terms for more info)



V-RIG Motorsport Bucket Racing Seat

The V-RIG Motorsport Bucket Racing Seat has been purpose-designed for the V-RIG simulator platform, delivering exceptional support and comfort across a wide range of driving disciplines.

Compatible with multiple seating positions, including Formula, GT, Rally, and other motorsport configurations.

Its innovative split-seat design significantly reduces shipping size and costs while maintaining the strength, rigidity, and premium feel expected from the V-RIG range.

Not available for individual sale. This seat is exclusively available to existing V-RIG customers or when purchased as part of a V-RIG chassis package.

Video includes options not included in this pre-order.
