V-RIG Production Status Update:

  • Available to Pre-Order now – Estimated Shipping TBC
0%
    0%

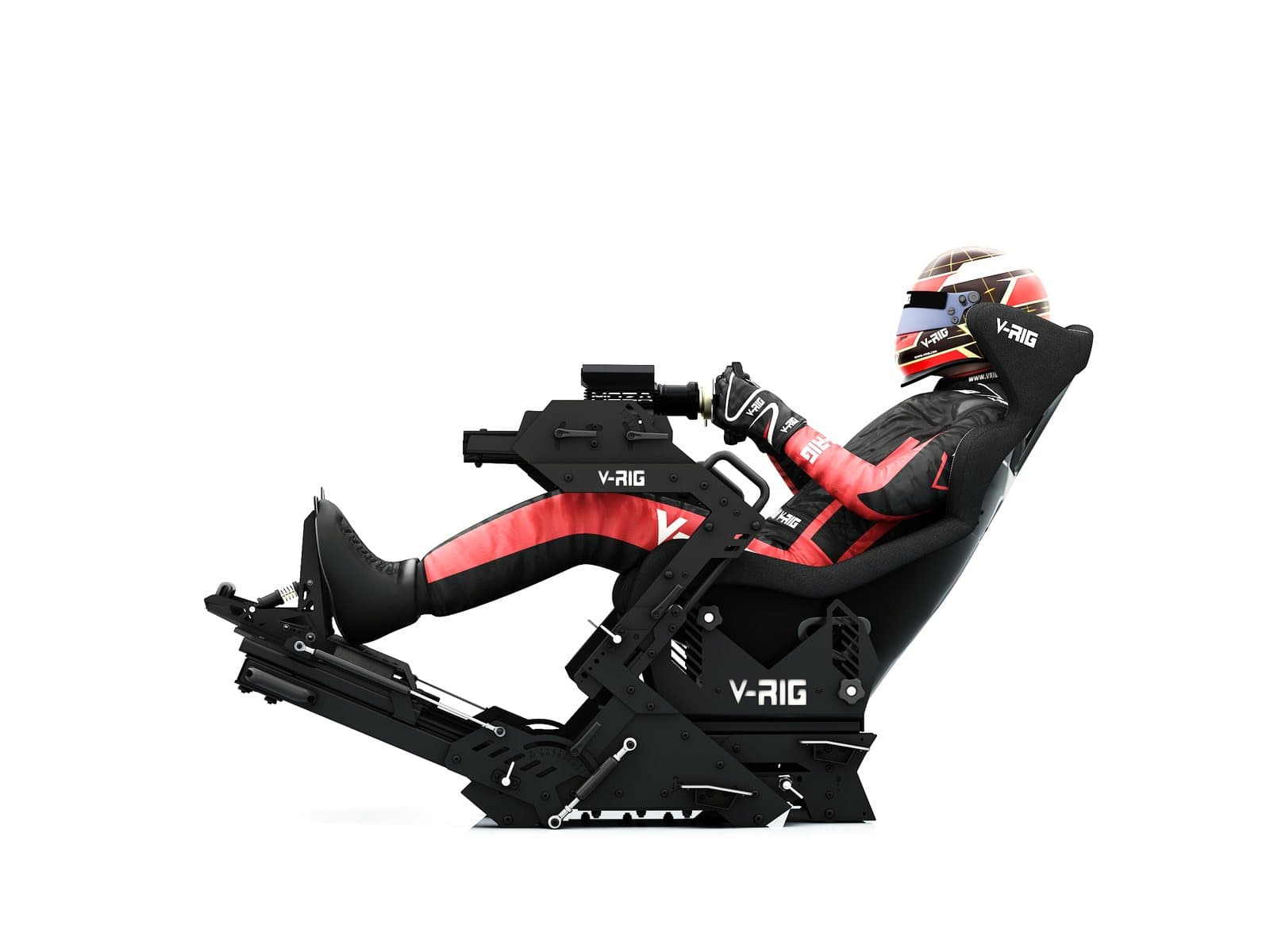

      SEAT POSITION - FORMULA
      The expansion system allows the rig to be stretched far beyond that of a standard rig, allowing a completely authentic formula position to be achieved.

      Pedals can be raised high using the quick release knobs, steering lowered and brought forward using the dual stage quick release adjustment system.

      The wheel deck is adjusted forward using the stage 1 quick release glide system, then fine adjustments can be made using the quick release stage 2 adjustment. Finally a quick release angle adjustment of the wheel deck can be made to suit your wheel and achieve the F1 style wheel angle.

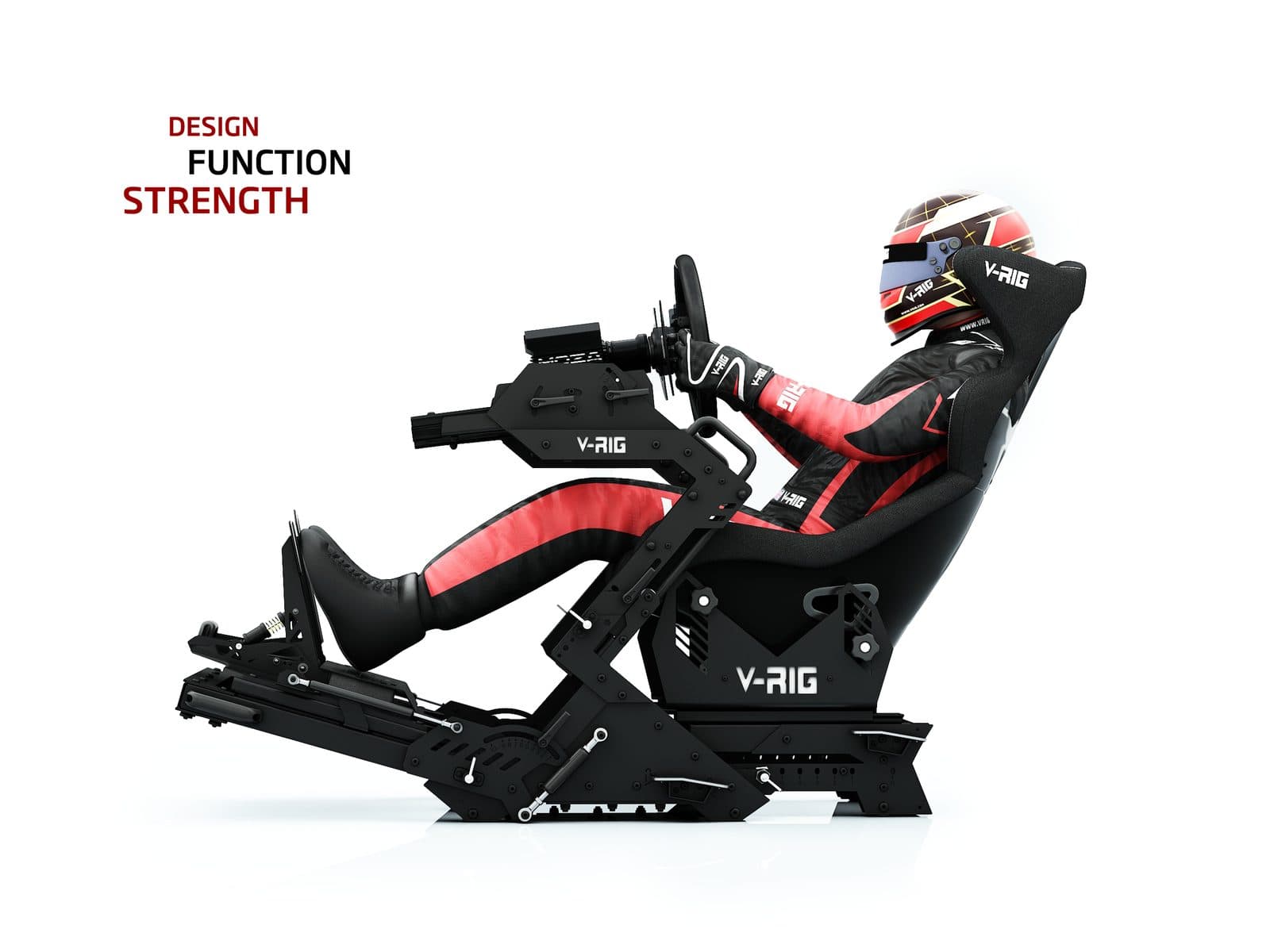

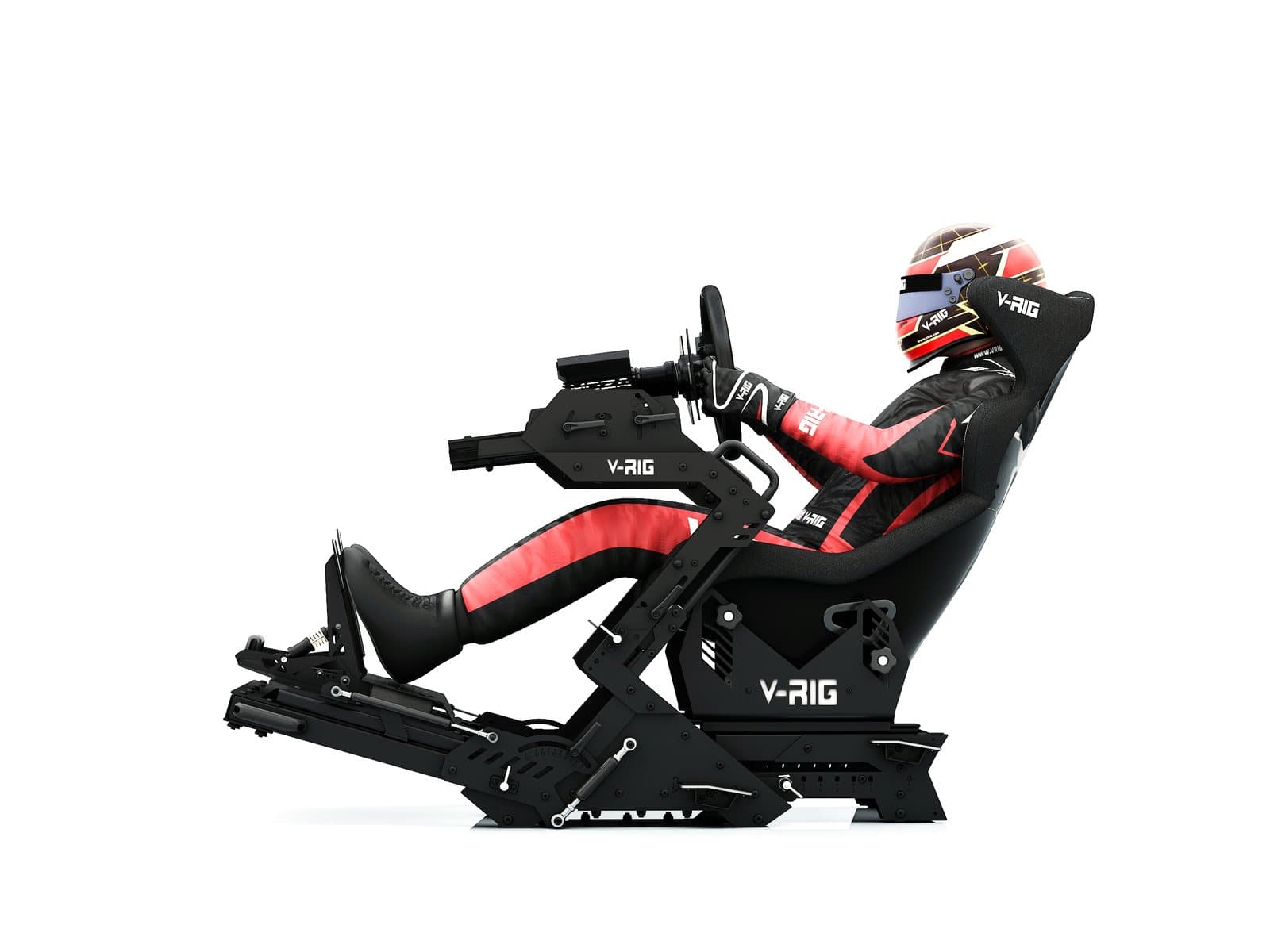

      SEAT POSITION - GT
      The V-RIG R1's incredible adjustability allows multiple seating styles to be configured.  This example shows an authentic GT style racing position configuration.

      Utilising 100% quick release adjustments to optimise the position of pedals, seat and steering system.

      This ability allows multiple seating styles to be configured regardless of height.

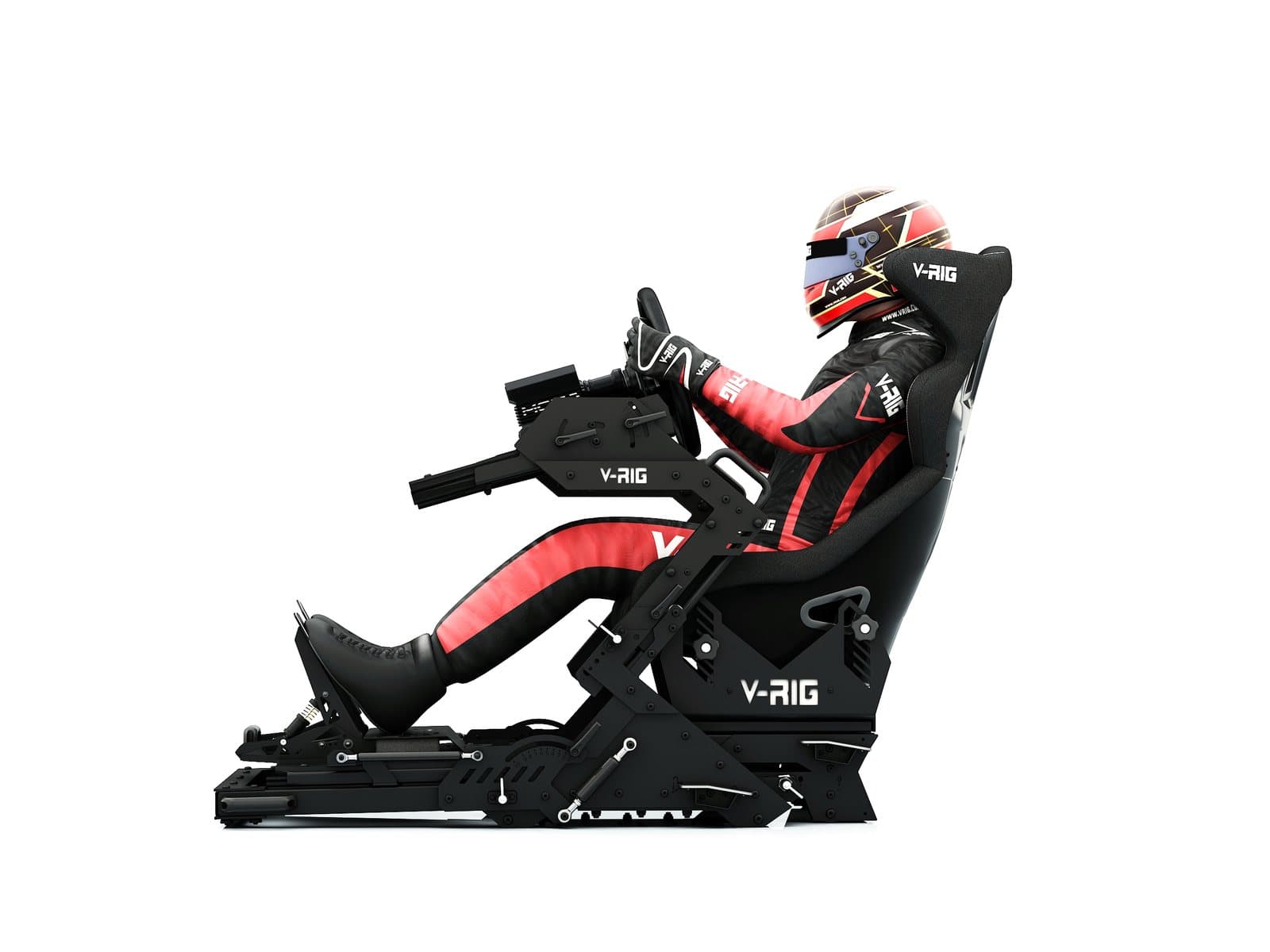

      SEAT POSITION - RALLY / TOURING
      All adjustments are quick release allowing you to completely change the driving style and feel of the rig in moments.  This example shows the rig in a setup typically found in a rally, road or touring car.

      Gearstick arm option attached with quick release distance and height adjustment. Gearstick arm can be mounted on either side or configured with one on both sides.

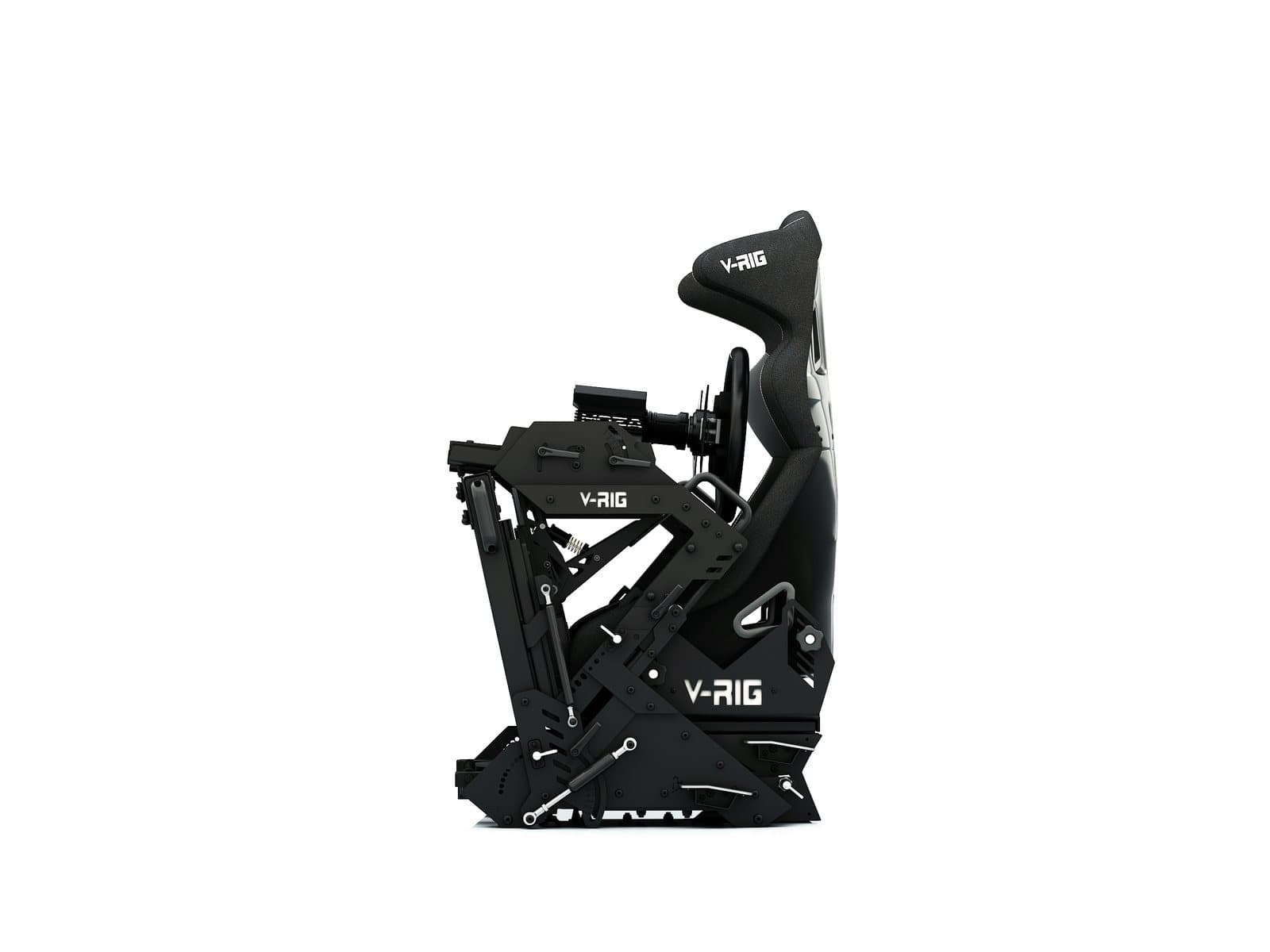

      SPACE SAVING MODE
      Once you have finished your session the rear of the rig can be contracted inwards, reducing the length of the simulator.  The system uses a high quality glide rail, rear wheels and a magnetic locking system ensuring a smooth and effortless operation.

      SPACE SAVER MODE DIMS

      LENGTH : 122.5cm

      WIDTH  : 63.5cm

      HEIGHT : 102.5cm

      Previous
      Next

      11 AXIS ADJUSTABILITY

      Convert the rig to suit any seating position, such as Rally, GT, Formula, etc.  Utilise the rig expansion system to slide the rear of the rig into the front when not in use to save space in your home.

      0%
        MAIN RIG ADJUSTMENT
        SEAT STAGE 2 DISTANCE ADJUST VIA MASTER FRONT AND BACK RIG EXPANSION : 53cm
        PEDAL DECK ADJUSTMENT
        • Pedal deck height adjust : 26cm
        • Pedal deck distance adjust : 20cm
        • Pedal deck angle adjust : -52 to +20 degrees
        (Pedal Deck Has to be 8 slots and above to achieve -52degreees of rotation.)
        STEERING DECK ADJUSTMENT
        • STEERING DECK HEIGHT ADJUST : 17 cm
        • STEERING DECK ANGLE ADJUST: -30 to + 45 degrees
        • STEERING DECK STAGE 1 DISTANCE ADJUST: 25cm (QR expansion adjust)
        • STEERING DECK STAGE 2 DISTANCE ADJUST : 20cm (QR Handle runners)
        • TOTAL STEERING DECK DISTANCE ADJUST : 45cm
        SEAT ADJUSTMENT
        • STAGE 1 SEAT DISTANCE ADJUST : 20cm

        • TOTAL SEAT DISTANCE ADJUST COMBINED WITH STAGE 2 SYSTEM (53cm) : 72cm
        (total combined adjustment of seat and main rig front to back expansion system)

        • SEAT HEIGHT ADJUST: 14cm

        • SEAT ANGLE ADJUST: -25 to + 25 DEGREES
        Previous
        Next

        ADJUSTABLE... UPDATABLE... VERSATILE...

        Utilising the extensive adjustment, the rig can be quickly transformed to suit small children and tall adults with an uncompromised seating position.

        DESIGN, FUNCTION, STRENGTH

        Designed to be functional, adjustable to the extreme, with a captivating design, support all major controls, suit most body types and all racing types.

        Simply put, it’s the swiss army knife of rigs.

        Tank like construction, utilising heavy duty steel box section sandwiched together with two lazer cut steel plates to form an ultra strong framework.

        Modular design allows addition of multiple add-ons such as display brackets, gearstick arms and much more.

        UPDATABLE DESIGN

        Designed and engineered with a weldless construction method using micro millimeter lazer accuracy for both the lazer cut plate and lazer cut box section.
        This approach allows ALL parts of the main chassis to be updatable with improvements, as technology evolves and new third party components are released in the market.
        Designed and engineered with a weldless construction method using micro millimeter lazer accuracy for both the lazer cut plate and lazer cut box section.
        Modular design allows addition of multiple addons such as display brackets, gearstick arms and much more.
        Functional, with a captivating design and adjustable to the extreme. Will support all major controls, suit most body types and all racing types.
        Previous
        Next

        NEXT DAY WORLDWIDE SHIPPING

        V-RIG products are ready to ship next business day* anywhere in the world.

        Upgrade your Sim Racing life today and get started by visiting the products section of our site.

        Self assembly construction for reduced shipping cost and ease of positioning in its final location.
        Detailed 3D assembly instructions included.
        Complete toolkit included for assembly.
        Previous
        Next

        *for products marked as in stock

        UPGRADES

        On-Board Display Bracket <<

        >> Free Standing Display Bracket

        • 0%
          1. 0%

            Mobility system upgrade

            Take your V-RIG mobile, for E-Sports and commercial applications or whether you simply want to easily move the system around your space.

            0%
              SIMPLE BOLT-ON DESIGN
              The Mobility System can be easily bolted in place by one person then the wheels raise the rig with a simple bolt mechanism taking the system mobile without any heavy lifting required.
              ON or OFF, USE THE RIG EITHER WAY
              With the mobility kit in place the system can still be used saving time during setup and breakdown at events or if you move the rig regularly in your space.
              HEAVY DUTY INDUSTRIAL CASTORS
              The Mobility System comes with 4 heavy duty industrial castors with brakes to firmly secure your rig in position.
              Previous
              Next

              MoRE upgrade OPTIONS

              MORE INFORMATION

              ABOUT

              We are a UK based company with full in-house design, engineering and manufacturing ensuring start to finish quality control.

              Our products are built using a unique construction method that allows individual elements of the rig to be updated –  in the same way that software can be updated, so can the V-RIG hardware.

              In addition to the updatable structure, our products are fully modular to allow add-ons to suit your requirements.

              All products are built in-house and ready to ship next working day.

              11 AXIS EXTREME ADJUSTABILITY

              By utilising a unique rig expansion mechanism, the length can be stretched far beyond the usual adjustments of most rigs on the market.

              This ability allows multiple seating styles to be configured regardless of height.

              All adjustments are quick release allowing you to completely change the driving style and feel of the rig in moments.

              Main rig

              • SEAT STAGE 2 DISTANCE ADJUST VIA MASTER FRONT AND BACK RIG EXPANSION : 53cm

              Pedal Deck

              • PEDAL DECK HEIGHT ADJUST : 26 cm
              • PEDAL DECK ANGLE ADJUST: -52 to + 20 degrees (Pedal Deck Has to be 8 slots and above to achieve -52 degrees of rotation)
              • PEDAL DECK STAGE 1 DISTANCE ADJUST: 20cm (QR expansion adjust)

              Steering deck

              • STEERING DECK HEIGHT ADJUST : 17 cm
              • STEERING DECK ANGLE ADJUST: -30 to + 45 degrees
              • STEERING DECK STAGE 1 DISTANCE ADJUST: 25cm (QR expansion adjust)
              • STEERING DECK STAGE 2 DISTANCE ADJUST : 20cm (QR Handle glide runners)
              • TOTAL STEERING DECK DISTANCE ADJUST : 45cm

              Seat

              • STAGE 1 SEAT DISTANCE ADJUST : 20cm
              • TOTAL SEAT DISTANCE ADJUST COMBINED WITH STAGE 2 SYSTEM(53cm) : 72cm (total combined adjustment of seat and main rig front to back expansion system)
              • SEAT HEIGHT ADJUST: 14cm
              • SEAT ANGLE ADJUST: -25 to + 25 DEGREES

              *Rotation angle that is achievable will vary depending on the height position of the particular part.

              SPACE SAVING MODE

              Once you have finished your session the rear of the rig can be contracted inwards reducing the length of the simulator.

              The system uses a high quality glide rail, rear wheels and a magnetic locking system ensuring smooth and effortless operation.

              DIMENSIONS IN SPACE SAVER MODE :

              LENGTH : 122.5cm
              WIDTH  : 63.5cm
              HEIGHT : 102.5cm

              ULTIMATE COMPATIBILITY

              Utilising the extensive adjustments the rig can be quickly transformed to suit the small, the tall and everyone in-between with a tailored seating position.

              • 4.2 ft – 7 ft  ( 128 cm – 214cm )

              *Within the 4.2 ft to 7ft range the rig is able to achieve completely authentic F1, GT and Rally seating positions, however users shorter than 4.2 feet and taller than 7 feet can still use the simulator, consideration needs to be made for certain aspects of the seating position not being completely authentic to real world F1, GT and Rally/touring seating positions in these scenarios.,

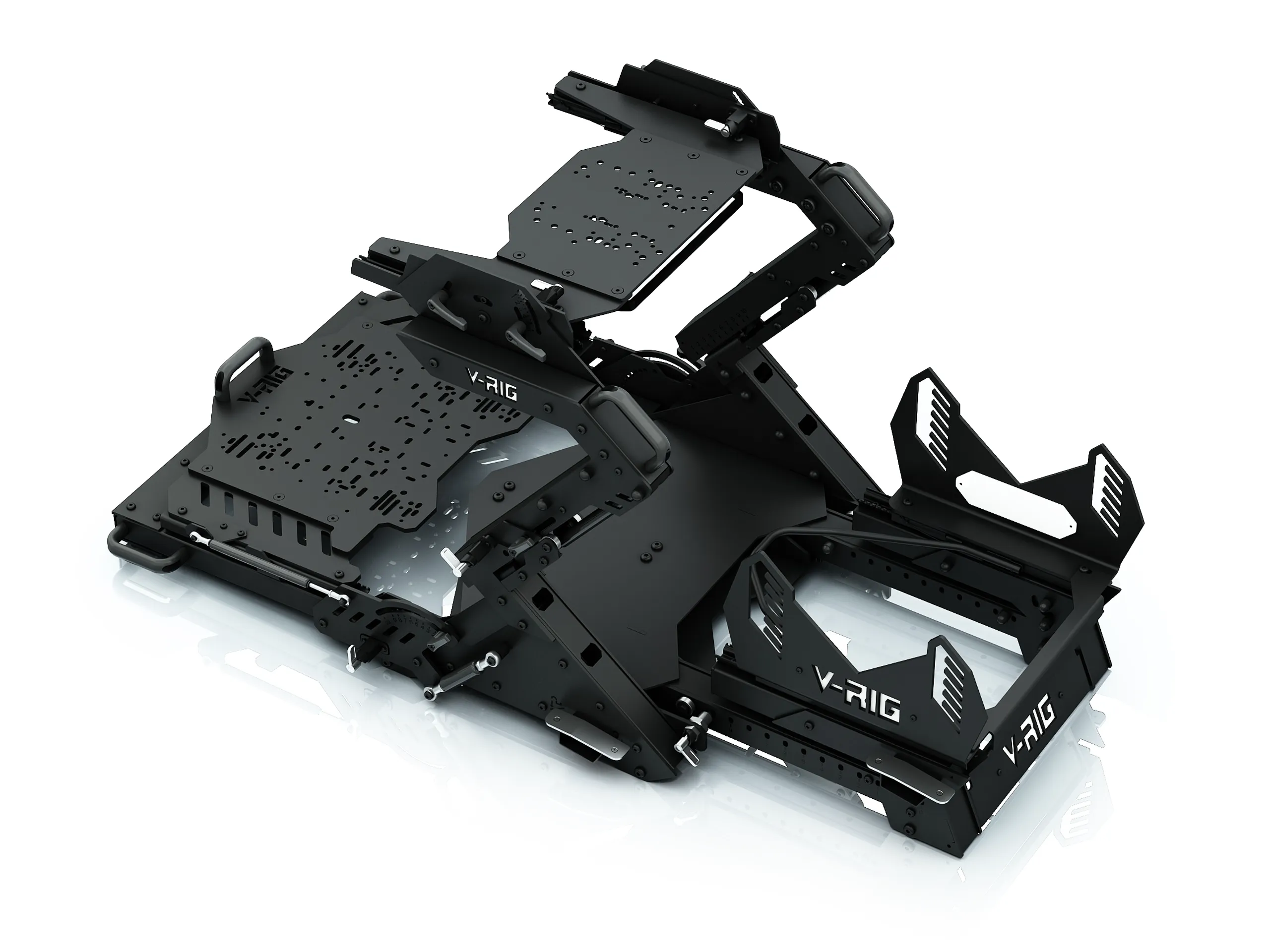

              UPDATABLE CONSTRUCTION DESIGN

              Designed to be functional, adjustable to the extreme, with a captivating design, support all major controls, suit most body types and all racing types.

              Simply put, it’s the swiss army knife of rigs.

              Tank like construction, utilising heavy duty steel box section sandwiched together with two lazer cut steel plates to form an ultra strong framework.

              Modular design allows addition of multiple add-ons such as display brackets, gearstick arms and much more.

              Utilising a weldless part based architecture, this approach allows ALL parts of the main chassis to be updatable with improvements, as technology evolves and new third party components are released in the market we will be able to provide updated individual parts of the rig or complete update kits securing your rigs future.

              • 50M X 50MM STEEL BOX SECTION AND HEAVY DUTY THICK STEEL PLATE USED THROUGHOUT THE RIG TO PROVIDE THE ULTIMATE STRENGTH AND RIGIDITY.
              • HEAVY DUTY M10 BOLTS AND LOCKING NUTS SECURE THE MAIN CHASSIS COMPONENTS ENSURING SOLID CONNECTIONS THAT WILL NOT WORK LOOSE.

              NEXT DAY SHIPPING WORLDWIDE

              V-RIG products are ready to ship next day* anywhere in the world.  Upgrade your Sim Racing life today and get started by visiting the products section of our site and chose the options that you would like for your setup.

              *Items marked in stock are ready to ship next day.  Next day shipping does not apply to pre-orders.



              FEATURES OVERVIEW

              • SELF ASSEMBLY CONSTRUCTION FOR EFFICIENT REDUCED COST SHIPPING.
              • STEP BY STEP ASSEMBLY INSTRUCTIONS AND TOOL KIT INCLUDED.
              • 10 YEAR CHASSIS WARRANTY.
              • MODULAR UPDATABLE CONSTRUCTION.
              • MODULAR UPGRADABLE DESIGN.
              • ULTRA STRONG LAZER CUT STEEL CONSTRUCTION.
              • EXTREME 11 WAY ADJUSTABILITY (13 WAY WITH 1 X GEARSTICK ARM).
              • SUPPORTS MOST POPULAR CONTROLS.
              • SUPPORTED COMPONENTS MADE AVAILABLE ON REQUEST BY UTILISING OUR OWN IN-HOUSE CAD TEAM AND IN-HOUSE MANUFACTURING FACILITY.
              • ABILITY TO SUPPORT WIDE HEIGHT RANGE.
              • ADJUST THE RIG USING 100% QUICK RELEASE SYSTEMS TO CREATE AUTHENTIC F1, GT & RALLY STYLE SETUPS.
              • GEARSTICK ARM UPGRADE WITH HEIGHT ADJUST AND QUICK RELEASE DISTANCE ADJUSTMENT.
              • GEARSTICK ARM MOUNTABLE ON LEFT, RIGHT OR CONFIGURE WITH ONE FOR BOTH SIDES.
              • SINGLE & TRIPLE MONITOR MOUNT, MOUSE & KEYBOARD, TACTILE FEEDBACK, SPEAKER MOUNTS AND MORE COMING SOON AS MODULAR UPGRADES.
              • NEXT DAY WORLDWIDE SHIPPING.

              CONTROL SUPPORT

              PEDAL SUPPORT

              • Logitech G25/G27/G29/G920
              • Fanatec CSL Elite Pedals
              • Fanatec CSL Elite Pedals Inverted
              • Fanatec CSL Elite Pedals LC
              • Fanatec CSR Elite Pedals
              • Fanatec CSR Elite Pedals Inverted
              • Fanatec Clubsport Pedals V1, V2, V3
              • Heusinkveld Sprint
              • Heusinkveld Sim Pedals Ultimate
              • Thrustmaster T3PA
              • Thrustmaster T3PA Pro
              • Thrustmaster T-LCM
              • Derek Spear Designs Pedals
              • HPP Simulation Pedals

              STEERING WHEEL SUPPORT

              • Logitech G25/G27/G29/G920
              • Fanatec CSL Elite Wheel Base
              • Fanatec Clubsport Wheel Base (All Versions)
              • Fanatec Podium Racing wheel F1
              • Fanatec Podium wheel base DD1 / DD2
              • Thrustmaster TS-PC RACER Ferrari 488 Challenge Edition
              • Thrustmaster TS-XW Racer Sparco P310 Competition Mod
              • Thrustmaster T80 Racing wheel / T80 Ferrari 488 GTB Edition
              • Thrustmaster T-GT
              • T150/T150 Pro Force Feedback
              • TMX Pro
              • TMX Force Feedback
              • T300 / T300RS GT Edition
              • TS-PC Racer
              • TX Racing Wheel / Ferrari 458 Italia Edition
              • Ferrari 458 Italia / Spider Racing Wheel
              • Ferrari Racing wheel Red Legend Edition

              SHIFTER SUPPORT

              • Thrustmaster TH8A
              • Fanatec Clubsport SQ Shifter (All Versions)
              • Logitech Shifter
              • Heusinkveld sequential shifter
              • Heusinkveld handbrake
              • Thrustmaster Hotas Warthog Stick and Thruster
              • Pro Sim PSL Sequential Shifter V2
              • Pro Sim Sequential Shifter B
              • Pro Sim H Pattern Shufter
              • Manu-Factory Sequential Shifter


              Contact us and we can provide pre-lazer cut plates as required for anything that’s not supported.

              UPGRADES

              IN-HOUSE MANUFACTURING

              V-RIG products are designed and built in our own UK manufacturing facility where we have the full capability to take raw materials to a finished paint and packed product.

              Our own team handle the manufacturing process from start to finish ensuring the highest standard of Quality Control.

              Every part of the process is 100% in our control ensuring that our design vision is fulfilled with complete integrity.

              • Starting with steel metal sheet our 2000 Watt fiber lazer cutting machine creates the various flat metal parts.

              • Next our 2000 Watt fiber lazer tube and box section cutting machine creates lazer accurate profiles, removing the need for manual drilling and ensuring 100% accuracy in construction.

              • Our 120 tonne brake press handles sheet metal folding.

              • Next in the process is the utilization of our in-house powder coat facility, comprised of an industry standard Gema Optiflex Pro powder coat system, our own custom-built powder coat bay and a curing oven. This custom in-house process is designed to ensure that all V-RIG products come with a high quality and ultra-durable paint finish.

              In addition to this we have a multi axis tube bender and tube former that will be used for future designs and upgrades.
